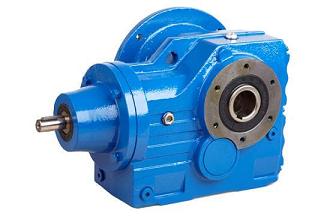

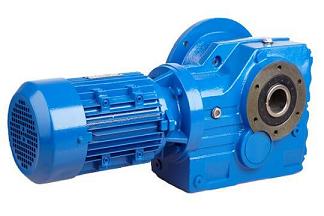

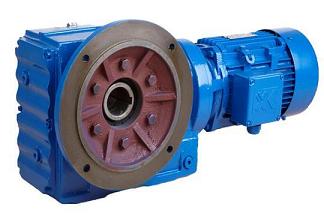

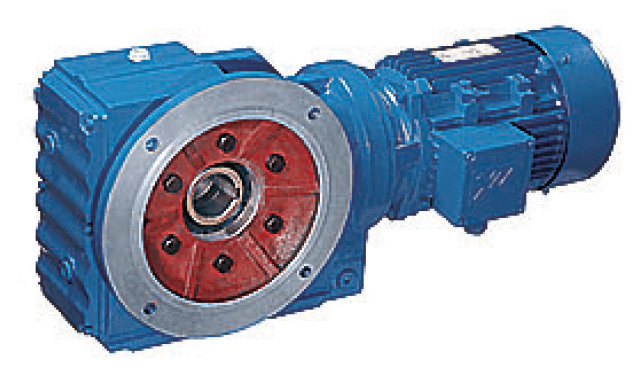

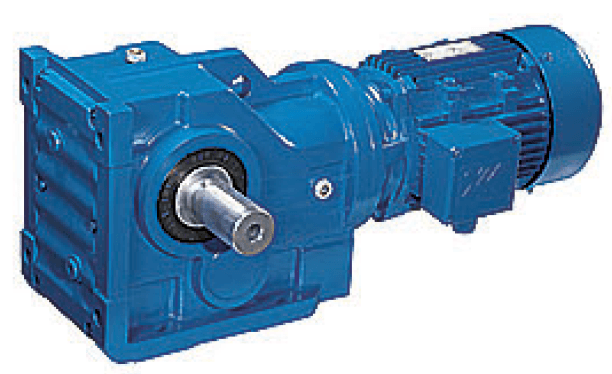

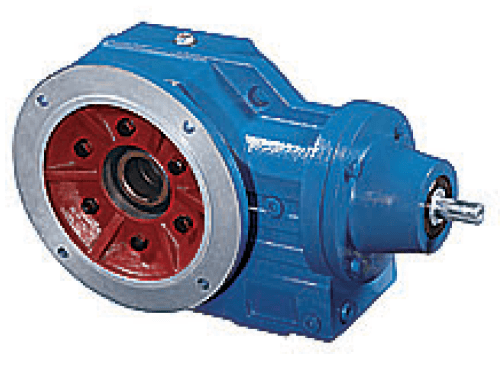

K Series Helical-Bevel Gearbox
High Torque · Low Noise · 100% Load Tested
Product Overview

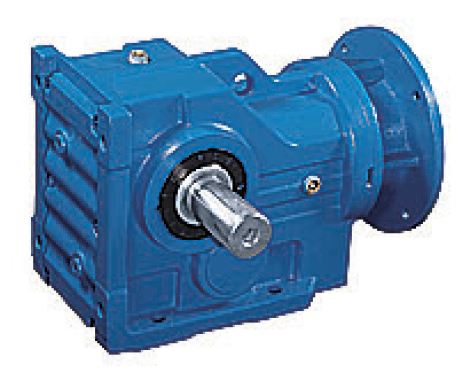

K‑series is right‑angle 90‑degree helical‑bevel gear unit with high‑rigidity cast‑iron housing. Built on modular system, it supports foot, flange and shaft‑mount installation, solid/hollow output shaft. Hardened alloy steel gears are carburized‑quenched and precision‑ground for high load capacity, low noise and over 90% efficiency. 2‑stage or 3‑stage gearing, low‑backlash option available. Widely applied in metallurgy, mining, chemical, paper‑making and construction machinery.
Type Selection

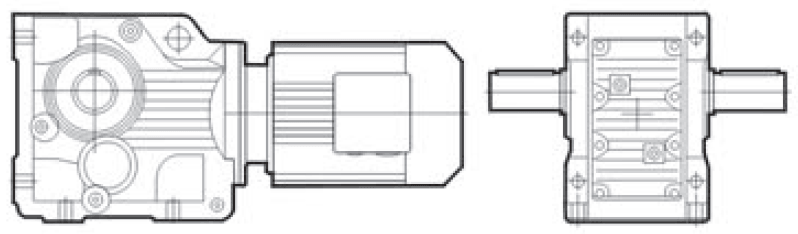

| K…Y…
Foot-mounted helical-bevel gear units with solid shaft |

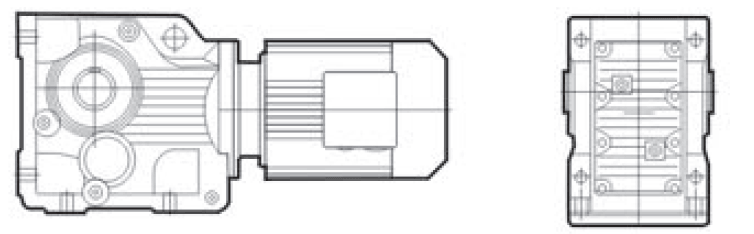

KAB…Y…
Foot-mounted helical-bevel units with hollow shaft |

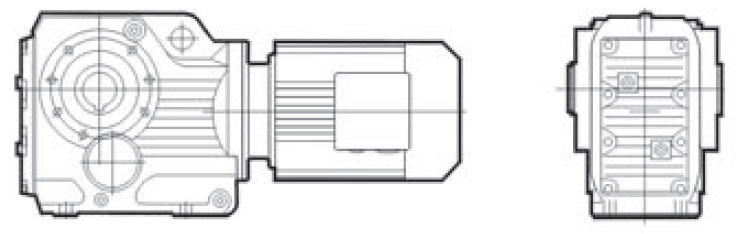

KA…Y…
Helical-bevel gear units with hollow shaft |

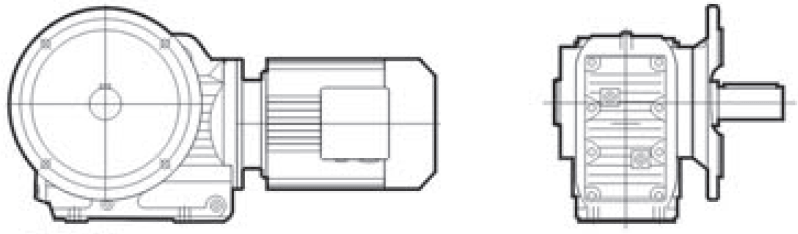

| KF…Y…
Flange-mounted helical-bevel gear units with solid shaft |

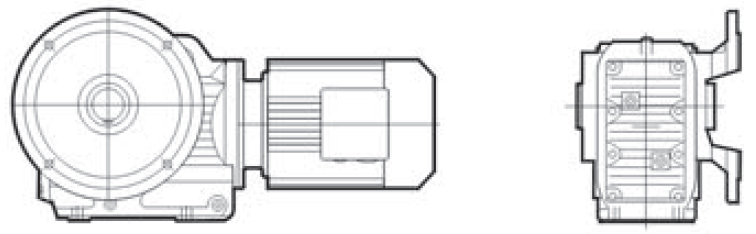

KAF…Y…
Flange-mounted helical-bevel gear units with hollow shaft |

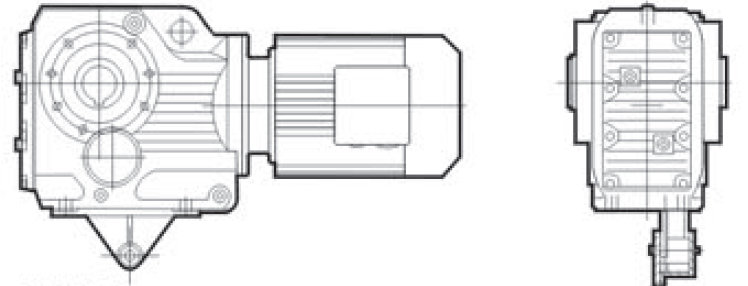

KAT…Y…
Torque-arm-mounted helical-bevel gear units with hollow shaft |

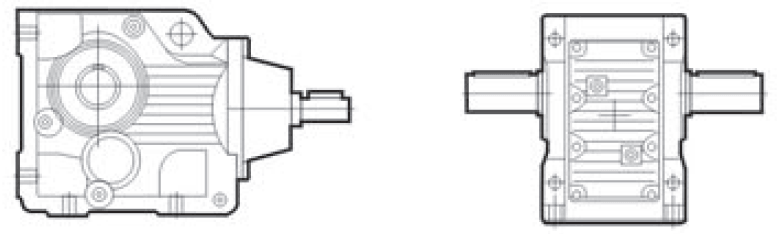

| K(KF,KA,KAF,KAB,KAZ)S…
Shaft input helical-bevel gear units |

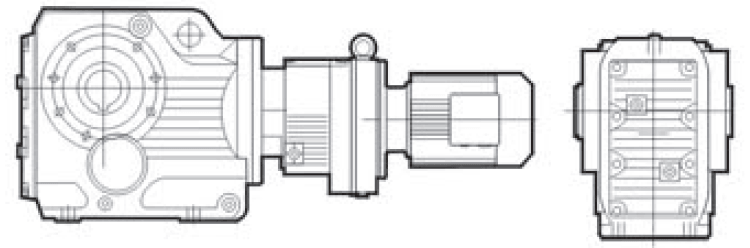

KA(K,KF,KAF,KAB,KAZ)…RF…Y…
Combinational helical-bevel gear units |

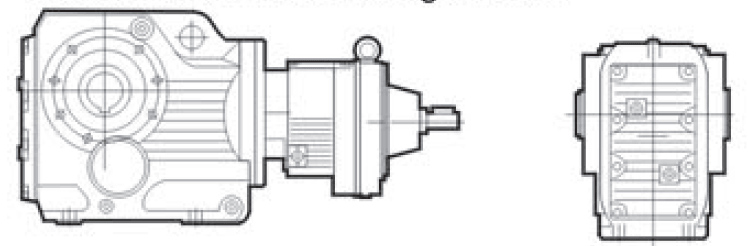

KA(K,KF,KAF,KAB,KAZ) S…RF…
Shaft input combinational helical-bevel gear units |
Key Advantage
Technical Specifications
- Power: 0.18-220KW
- Ratio: 5.36-32625
- Input Speed: 1450RPM, 960RPM, 710RPM
- Output Speed: 0.1-270Rpm
- Torque: 155-50000N.m
- Mounting Type: Foot-mounted / Flange-mounted / Shaft-mounted
- Output Shaft Type: Hollow shaft / Solid shaft
- Gear Material: 20CrMnTi
- Gear Hardness: Surface hardness: HRC58～62 Core hardness: HRC33～40
- Gear Precision: DIN 6 or ISO 6
- Output Shaft Material: 40Cr
- Housing Material: Cast iron HT200 or HT250
- Bearing Brand: C&U, HRB, LYC, ZWZ
- Oil Seal Brand: NAK
- Noise: 65-75dB

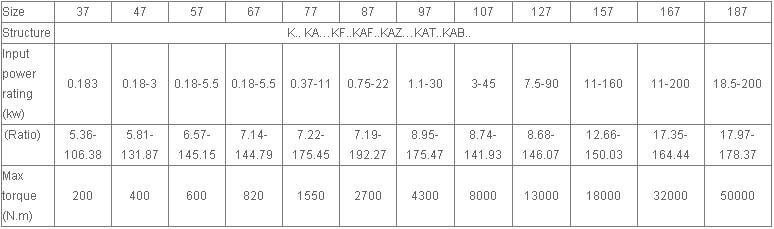

Input power and maximum torque
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 |
| Structure | K… KA… KF… KAF… KAZ… KAT… KAB… | |||||||||||
| Input power (kw) | 0.18-3.0 | 0.18-3.0 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 3-45 | 7.5-90 | 11-160 | 11-200 | 18.5-200 |
| Ratio | 5.36-106.38 | 5.81-131.87 | 6.57-145.15 | 7.14-144.79 | 7.22-175.45 | 7.19-175.45 | 8.95-175.47 | 8.74-141.93 | 8.68-146.07 | 12.66-150.03 | 17.35-164.44 | 17.97-178.37 |
| Maximum torque (N.m) | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 | 50000 |
