F Series Parallel Shafts Helical Gear Motor

High Torque · Low Noise · 100% Load Tested

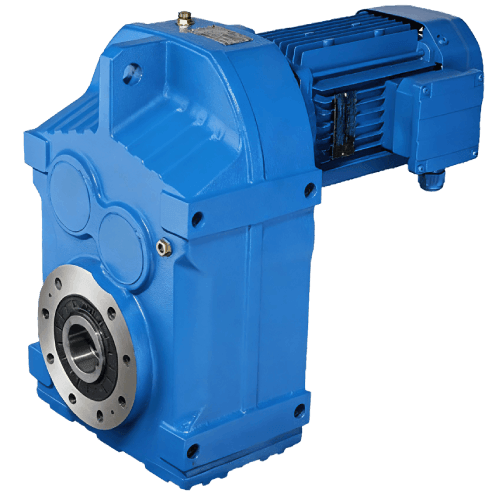

F Series Parallel Shafts Helical Gear Motor
Power Range: 0.18-200 kw
Output Torque: Up to 1800 N.m
Ratio Range: 3.81-13014
Output Speed: 0.11-373 rpm
Output shaft: Hollow shaft / Solid shaft / Splined hollow shaft
Mounting Types: Foot‑mounted / Flange‑mounted / Shaft‑mounted

  • Warehouse stacker & lifting equipment

  • Chemical & environmental agitator

  • Concrete & building material machinery

Product Overview

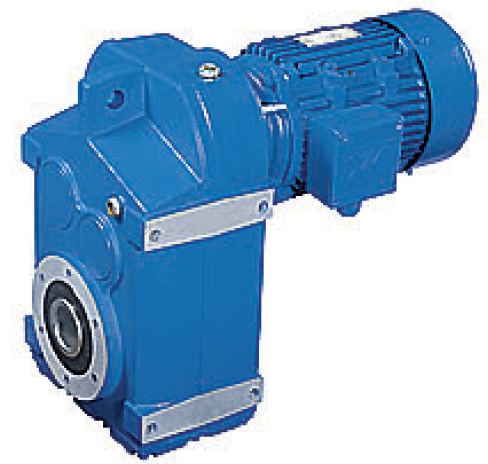

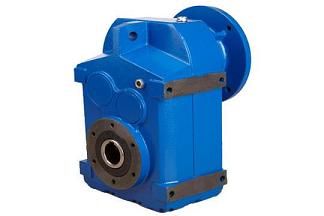

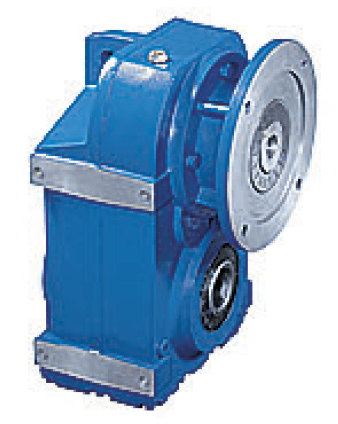

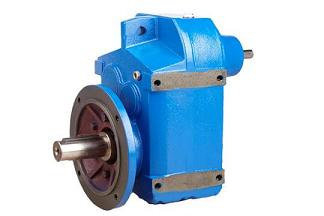

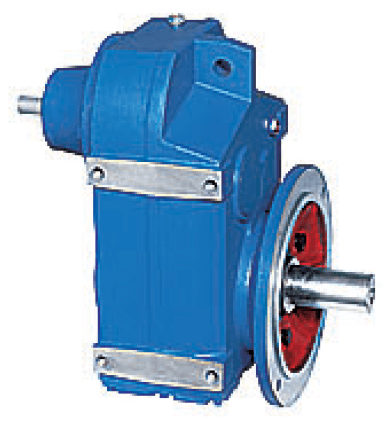

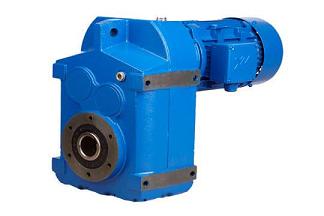

F series parallel shafts helical gear motor with high‑rigidity cast‑iron housing. Modular compact design, ideal for limited installation space. Multiple mounting options: foot, flange and shaft‑mount. Output shaft available in solid, hollow and splined hollow shaft.
Hardened alloy‑steel gears are carburized, quenched and precision ground, delivering stable low‑noise operation, efficiency over 95%, high load capacity and low temperature rise. 2‑stage or 3‑stage gearing, low‑backlash option is available. Power range 0.18‑200 kW, max output torque up to 18000 N·m, ratio 3.81‑13014. Widely used in conveyor, lifting, metallurgy, building material, chemical, paper‑making and construction machinery.

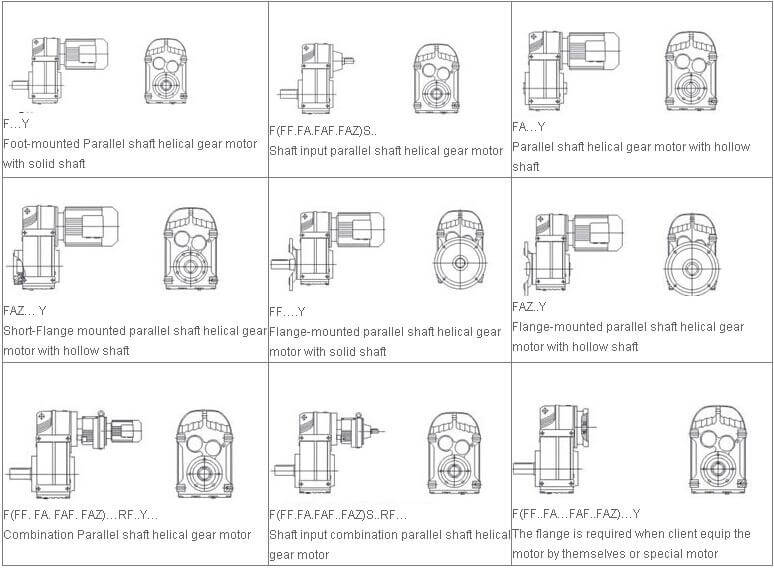

Type Selection

F…Y…

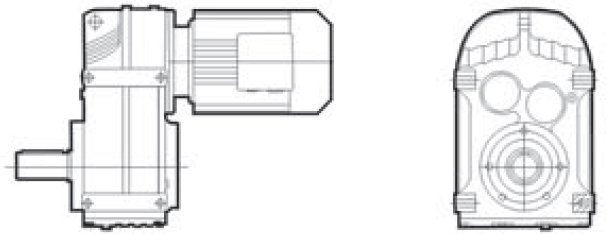

Foot-mounted parallel shaft helical gear units with solid shaft

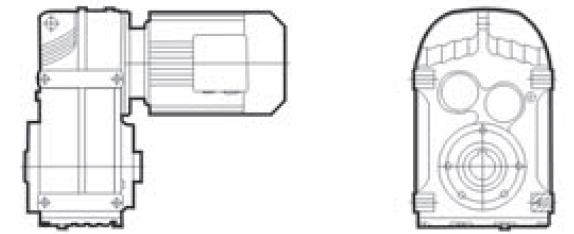

 FA…Y…


Parallel shaft helical gear units with hollow shaft

 FAZ…Y…

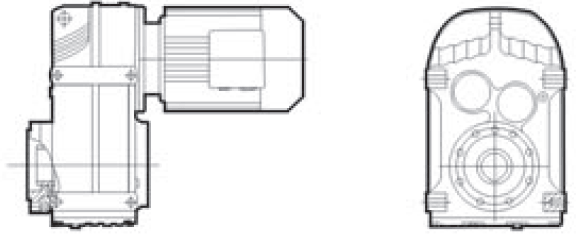

Short-flange-mounited parallel shaft helical gear units with hollow shaft

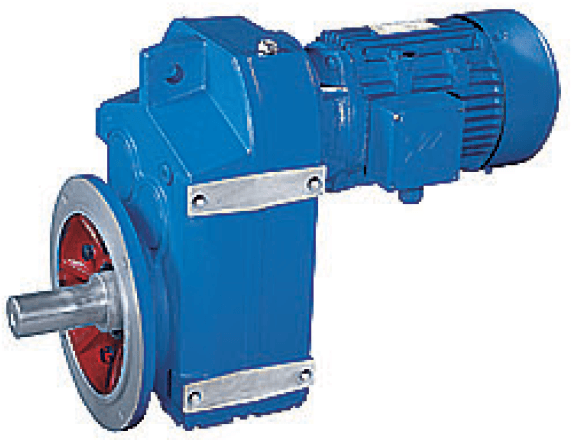

FF…Y…

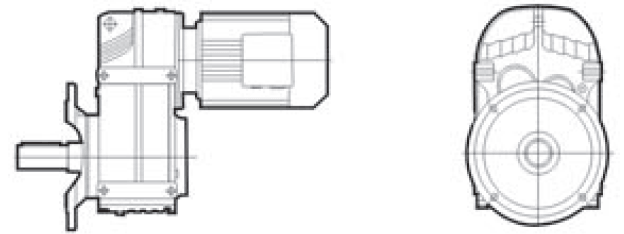

Flange-mounted parallel shaft helical gear units with solid shaft

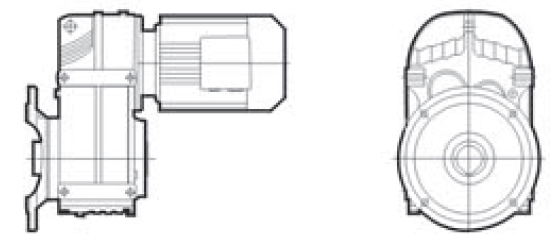

 FAF…Y…


Flange-mounted parallel shaft helical gear units with hollow shaft

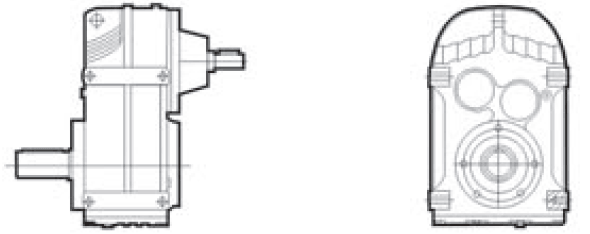

 F(FF,FA,FAF,FAZ)S…

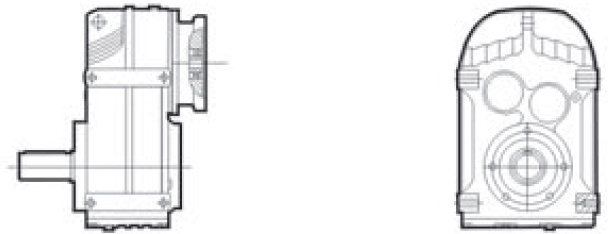

Shaft input parallel shaft helicalgear units
F(FF,FA,FAF,FAZ)…RF…Y…

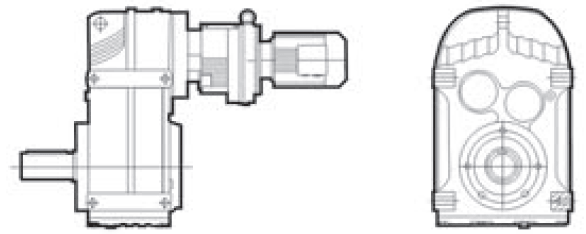

Combined parallel shaft helical gear units

 F(FF,FA,FAF,FAZ)S…RF…

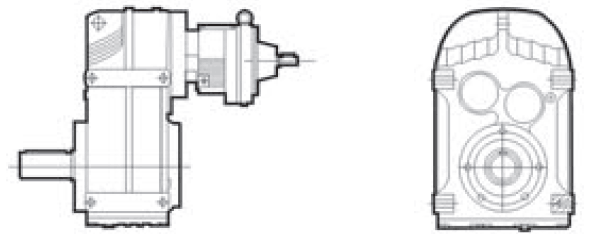

Shaft input combined parallel shaft helical gear units

 F(FF,FA,FAF,FAZ)…Y…


If motor is self-supplied or special motor is adopted, a coupling flange is required.

Key Advantage

  • High power density, Reducer efficiency ＞ 90%

  • Hardened & Precision ground gears, low noise

  • Modular structure, multiple mounting forms

  • Ultra low temperature rise & Long service lifetime

Technical Specifications

  • Power: 0.18-200KW
  • Ratio: 3.81-13014
  • Input Speed: 1450RPM, 960RPM, 710RPM
  • Output Speed: 0.11-373Rpm
  • Torque: up to 1800N.m
  • Mounting Type: Foot-mounted / Flange-mounted / Shaft-mounted
  • Output Shaft Type: Hollow shaft / Solid shaft / Spined hollow shaft
  • Gear Material: 20CrMnTi
  • Gear Hardness: Surface hardness: HRC58～62   Core hardness: HRC33～40
  • Gear Precision: DIN 6 or ISO 6
  • Output Shaft Material: 40Cr
  • Housing Material: Cast iron  HT200 or HT250
  • Bearing Brand: C&U, HRB, LYC, ZWZ
  • Oil Seal Brand: NAK
  • Noise: 65-75dB

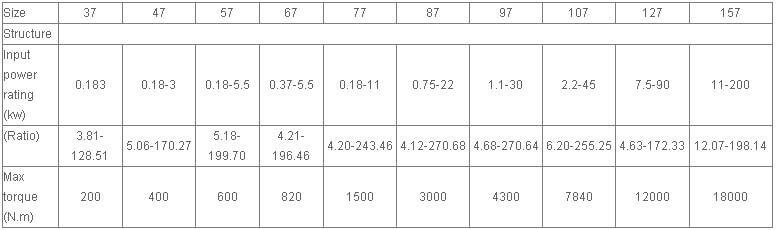

Input power and maximum torque

Size 37 47 57 67 77 87 97 107 127 157
Structure F… FA… FF… FAF… FAZ…
Input power (kw) 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-200
Ratio 3.81-128.51 5.06-170.27 5.18-199.70 4.21-196.46 4.20-243.46 4.12-270.68 4.68-270.64 6.20-255.25 4.63-172.33 12.07-198.14
Maximum torque (N.m) 200 400 600 820 1500 3000 4300 7840 12000 18000

Commercial Information

MOQ: 1 set

Packing: Polywood

Delivery: 7-30 days

Payment:
FOB, CIF, CFR

Method:
T/T or L/C

Port:
Shanghai or Ningbo

Request A Quotation

Fill in the form and our team will reply within 24 hours.

    Your data is always safe with us. We will only contact you in conjunction with your enquiry.

    Contact Directly

    Email: info@hbreducer.com
    WhatsApp: +86-137 7601 2486

    Quick Tips

    Please provide power, speed, torque and mounting requirements for a fast quotation.
