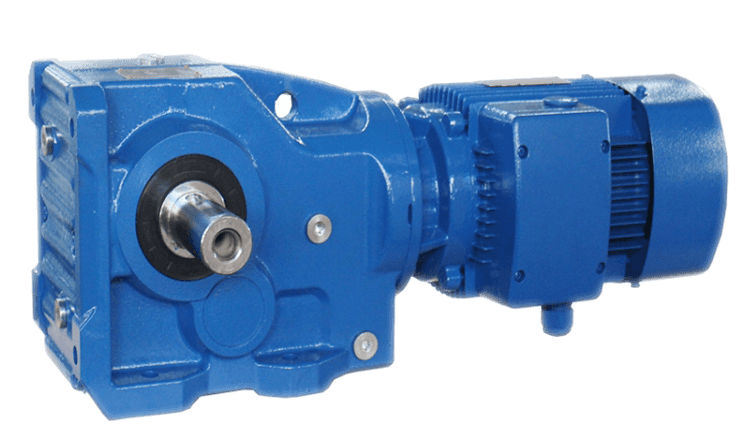

K Series Helical Bevel Gearbox

K Series Helical Bevel Gearbox

The K‑series helical‑bevel gear reducer delivers high torque, low‑noise and high‑efficiency transmission. Compact bevel‑helical layout suits limited‑space installation scenarios. All units pass 100‑percent load test before delivery.

Key Features
▪ High‑strength alloy steel gears, hardened & precision ground
▪ Low noise ≤65 dB under rated working condition
▪ High transmission efficiency up to 94%
▪ Multiple mounting options: foot‑mounted, flange‑mounted
▪ Support input motor customization, IEC standard motor interface
▪ Accept OEM & ODM custom service for special ratio / shaft / housing

Technical data:
1. Power: 0.12-200 KW
2. Ratio: 3.5-191
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 155-50000N.m
5. Transmission stage: 2 stage, 3 stage
6. Mounting position: Vertical, horizontal

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 7-25 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Applications:
✅ Conveyor systems
✅ Mixers & agitators
✅ Packaging machinery
✅ Food processing equipment
✅ Logistics automation equipment
✅ Agricultural machinery

FAQ:
Q1: Can you make custom gear reducers?
A: Yes, we support custom ratio, output shaft, special mounting and non‑standard housing. Please send your working condition parameters.

Q2: What is your MOQ?
A: 1 unit for standard model; custom solution depends on drawing & requirements.

Q3: What is the lead‑time?
A: Standard models: 7‑15 working days; custom gearboxes: 15‑25 working days.

Q4: Can you provide CAD / STEP 3D drawings?
A: Yes, contact us to get drawing files for your project.
