How to Replace SEW Gearbox: A Complete Step-by-Step Guide

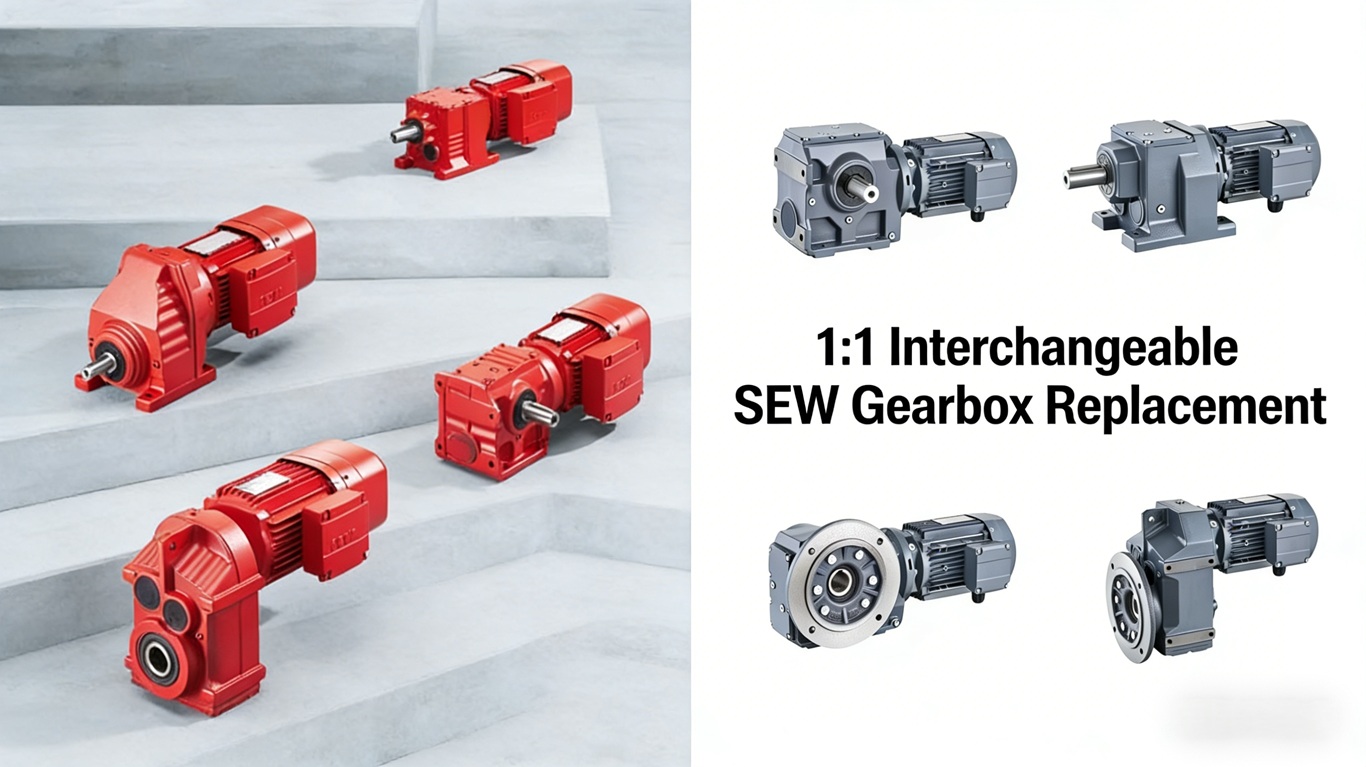

replace SEW gearbox

Many industrial users are looking for reliable alternatives to replace SEW gearboxes.

If you want higher cost-performance, shorter lead time, and stable quality without changing installation or parameters, this guide will show you how to replace a SEW gearbox correctly and safely.

1. Why More Users Choose to Replace SEW Gearboxes

SEW gearboxes are widely used in conveyors, mixing equipment, cranes, packaging machines, and material handling systems.

However, long delivery time, high maintenance cost, and expensive spare parts push many factories to find equivalent replacements.

A suitable replacement gearbox should meet these requirements:
  • Same mounting dimensions
  • Same ratio and input/output speed
  • Equal or higher output torque
  • Same input flange and shaft size
  • Compatible with the motor
  • Reliable quality for 24-hour industrial working

2. Key Data You Must Collect Before Replacement

To replace SEW gearbox without modification, prepare these details:
  1. SEW model number (e.g. K, R, F, S series)
  2. Gear ratio
  3. Input power / motor power
  4. Output torque
  5. Input and output shaft size
  6. Mounting type (foot, flange, B5, B14)
  7. Input direction and position
  8. Application and working environment
With these data, you can get a 1:1 interchangeable gearbox easily.

3. How to Match R, F, K, S Series SEW Gearboxes

SEW’s main series can be directly replaced by standard helical, parallel shaft, and right-angle gearboxes.

R Series – Helical Gearbox

  • Replacement: Helical gear reducer
  • Features: high efficiency, low noise, strong load capacity
  • Applications: conveyors, agitators, general machinery

F Series – Parallel Shaft Helical Gearbox

  • Replacement: Parallel shaft helical gearbox
  • Features: parallel input & output, space-saving
  • Applications: packaging machines, logistics systems

K Series – Bevel Helical (Right Angle) Gearbox

  • Replacement: Right angle bevel helical gearbox
  • Features: 90° transmission, high torque
  • Applications: cranes, hoists, heavy-duty conveyors

S Series – Worm & Helical Gearbox

  • Replacement: Right angle helical worm gearbox
  • Features: self-locking function, small size
  • Applications: elevators, rotary tables

4. Step-by-Step Installation When Replacing SEW Gearbox

  1. Power off and lock the machine
  2. Remove the motor and old gearbox
  3. Clean the mounting base and connection parts
  4. Install the replacement gearbox and fix firmly
  5. Connect the motor and check alignment
  6. Add the correct lubricant
  7. Test run without load for 15–30 minutes
  8. Check noise, vibration, temperature, and oil leakage
If the installation dimension is the same, replacement can be finished in 30 minutes to 2 hours.

5. Benefits of Replacing SEW with a High-Quality Alternative

  • Lower cost (30%–50% cost saving)
  • Shorter lead time (weeks instead of months)
  • Easy maintenance
  • Stable torque and efficiency
  • 1:1 interchangeable, no need to modify equipment
  • Customized solutions for special working conditions

6. How to Choose a Reliable SEW Replacement Supplier

When choosing a manufacturer to replace SEW gearboxes, pay attention to:
  • Professional technical support for model matching
  • Complete quality control system
  • Ability to produce R/F/K/S equivalent series
  • Experience in global exports
  • After-sales service and warranty
A reliable supplier can provide free model matching service to help you confirm the replacement solution quickly.

Replacing SEW gearboxes is a practical way to reduce cost and improve efficiency for industrial equipment.

By checking key parameters and choosing 1:1 interchangeable helical, parallel shaft, or right-angle gearboxes, you can achieve stable performance with better cost-performance.

If you need free model matching or a custom solution to replace SEW R/F/K/S series gearboxes, contact our technical team for a professional proposal and quotation.
